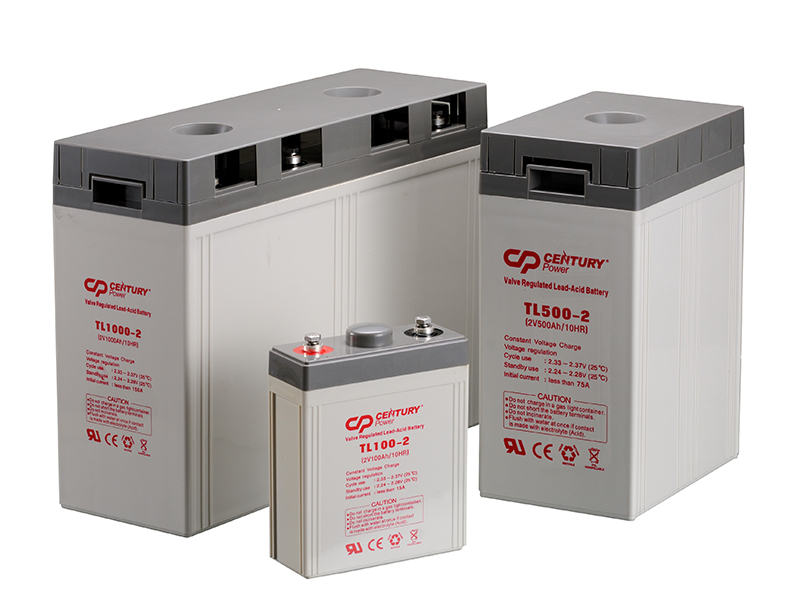

TL SERIES (AGM)
Design Life:＞15 years
Voltage: 2 Volts
Capacity:80Ah~3000Ah
Rate:C10 to 1.8V/cell @25℃
* Stable Quality & High Reliability.
* Sealed Construction.
* Long Service Life, Float or Cyclic.
* Maintenance-Free Operation.
* Low Pressure Venting System.
* Heavy Duty Grids & Low Self Discharge.
Technical Features
TL series is a general purpose battery with 20 years design life in float service. With heavy duty grids, thicker plates, special additives and updated AGM valve regulated technology, the TL series battery provides consistent performance and long service life. The new grid design effectively reduces the internal resistance, which provides higher specific energy density and excellent high rate discharge characteristics. It is suitable for communications back-up power and EPS/UPS applications .
Technical Specifications
| Model | Nominal Voltage | Capacity | Size | Weight | Terminal | Layout | |||||||||
| （Ah） | Length | Width | Height | Total Height | （Kg） | （Lbs） | |||||||||
| （V） | mm | inch | mm | inch | mm | inch | mm | inch | |||||||
|
TL80-2 |
2 | 80/10HR | 171 | 6.73 | 72 | 2.83 | 205 | 8.07 | 230 | 9.05 | 4.7 | 10.36 | T4 | G | |
|
TL100-2 |
2 |
100/10HR |
171 |
6.73 | 72 | 2.83 | 205 | 8.07 | 230 | 9.05 | 5.8 | 12.78 | T4 | G | |
| TL120-2 | 2 | 120/10HR | 171 | 6.73 | 72 | 2.83 | 205 | 8.07 | 230 | 9.05 | 6.3 | 13.88 | T4 | G | |
| TL150-2 | 2 | 150/10HR | 171 | 6.73 | 102 | 4.01 | 206 | 8.11 | 230 | 9.05 | 8.1 | 17.85 | T4 | G | |
|
TL200-2A |
2 | 200/10HR | 170 | 6.69 | 106 | 4.17 | 330 | 12.99 | 367 | 14.44 | 13.0 | 28.66 |
T5 |
G | |
| TL200-2B | 2 | 200/10HR | 173 | 6.81 | 111 | 4.37 | 329 | 12.95 | 365 | 14.37 | 13.3 | 29.32 | T5 | G | |
| TL240-2 | 2 | 240/10HR | 173 | 6.81 | 111 | 4.37 | 329 | 12.95 | 365 | 14.37 | 14.1 | 31.08 | T5 | G | |
| TL300-2A | 2 | 300/10HR | 171 | 6.73 | 151 | 5.94 | 330 | 12.99 | 365 | 14.37 | 18.5 | 40.78 | T5 | G | |
| TL300-2B | 2 | 300/10HR | 171 | 6.73 | 151 | 5.94 | 330 | 12.99 | 366 | 14.40 | 18.5 | 40.78 |
T5 |
G | |
| TL350-2 | 2 | 350/10HR | 171 | 6.73 | 151 | 5.94 | 330 | 12.99 | 365 | 14.37 | 20.5 | 45.19 | T5 | G | |
| TL400-2 | 2 | 400/10HR | 211 | 8.30 | 176 | 6.92 | 329 | 12.95 | 367 | 14.44 | 26.1 | 57.54 |
T5 |
H | |
| TL425-2 | 2 | 425/10HR | 211 | 8.30 | 176 | 6.92 | 329 | 12.95 | 367 | 14.44 | 26.8 | 59.08 | T5 | H | |
| TL500-2A | 2 | 500/10HR | 241 | 9.48 | 171 | 6.73 | 349 | 13.74 | 368 | 14.48 | 31.0 | 68.34 |
T5 |
H | |
| TL500-2B | 2 | 500/10HR | 241 | 9.48 | 172 | 6.77 | 330 | 12.99 | 364 | 14.33 | 31.0 | 68.34 | T5 | H | |
| TL600-2 | 2 | 600/10HR | 301 | 11.85 | 175 | 6.88 | 331 | 13.03 | 366 | 14.40 | 37.7 | 83.11 |
T5 |
H | |
| TL650-2 | 2 | 650/10HR | 301 | 11.85 | 175 | 6.88 | 331 | 13.03 | 366 | 14.40 | 38.5 | 84.87 | T5 | H | |
| TL800-2 | 2 | 800/10HR | 410 | 16.14 | 176 | 6.92 | 330 | 12.99 | 365 | 14.37 | 51.6 | 113.75 | T5 | I | |
| TL1000-2A | 2 | 1000/10HR | 472 | 18.58 | 172 | 6.77 | 338 | 13.30 | 355 | 13.97 | 62.0 | 136.68 | T5 | I | |
| TL1000-2B | 2 | 1000/10HR | 475 | 18.70 | 175 | 6.88 | 328 | 12.91 | 365 | 14.37 | 62.0 | 136.68 | T5 | I | |
| TL1200-2A | 2 | 1200/10HR | 472 | 18.58 | 172 | 6.77 | 338 | 13.30 | 355 | 13.97 | 68.5 | 151.01 | T5 | I | |
| TL1200-2B | 2 | 1200/10HR | 475 | 18.70 | 175 | 6.88 | 328 | 12.91 | 365 | 14.37 | 68.5 | 151.01 | T5 | I | |
| TL1500-2 | 2 | 1500/10HR | 401 | 15.78 | 351 | 13.81 | 342 | 13.46 | 378 | 14.88 | 96.5 | 212.74 | T5 | J | |
| TL1600-2 | 2 | 1600/10HR | 401 | 15.78 | 351 | 13.81 | 342 | 13.46 | 378 | 14.88 | 98.5 | 217.15 | T5 | J | |
| TL2000-2 | 2 | 2000/10HR | 491 | 19.33 | 351 | 13.81 | 343 | 13.50 | 383 | 15.07 | 130.0 | 286.60 | T5 | K | |
| TL2500-2 | 2 | 2500/10HR | 712 | 28.03 | 353 | 13.89 | 341 | 13.42 | 382 | 15.03 | 180.0 | 396.83 | T5 | K | |
| TL3000-2 | 2 | 3000/10HR | 712 | 28.03 | 353 | 13.89 | 341 | 13.42 | 382 | 15.03 | 190.0 | 418.87 | T5 | K | |
